產品分類列表 > LeadView 數位CCD相機 > LeadView系列相機

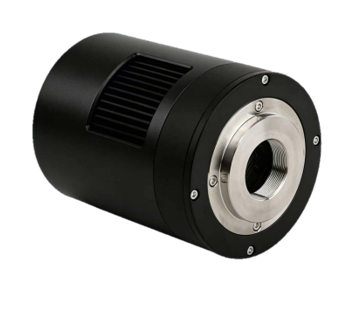

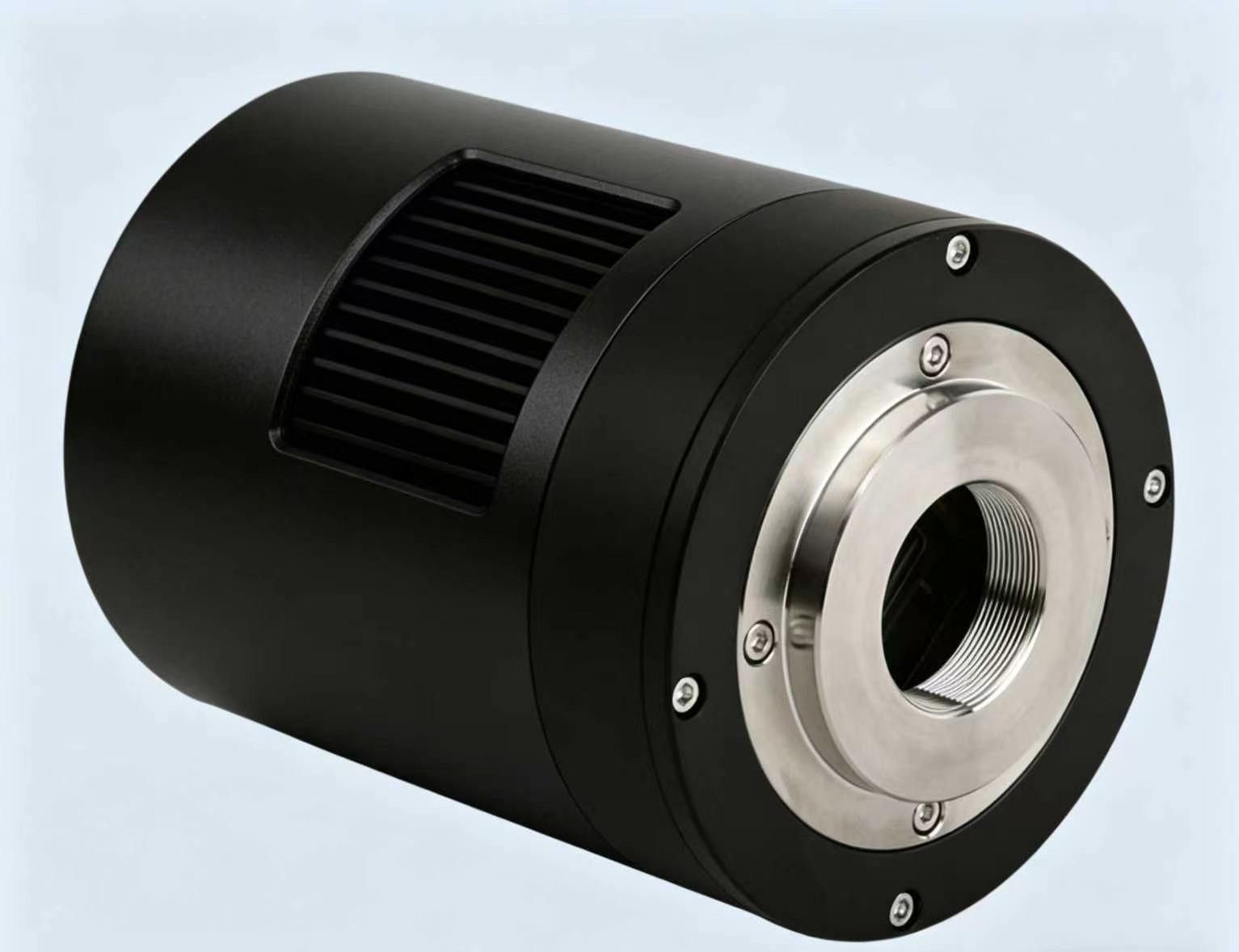

LeadView 7100AC-FL/LeadView 7100AM-FL
LeadView 7100AC-FL/LeadView 7100AM-FL
產品特點
- 7.0MP (3200x2200)解析度、4.5μm × 4.5μm(像素大小)、晶片尺寸為14.4mm × 9.9mm(1.1”英寸)確保微弱的信號有效捕獲
- 雙級半導體深度製冷，低於環境溫度42℃，有效降低暗電流和熱雜訊，暗電流典型值 0.07mV @ -20℃
- 最大曝光時間可達 1小時，支持長時間積分成像，適合極弱光信號探測採用密封腔體和防結霧視窗設計，確保低溫工作時感測器表面不結露，保證成像品質穩
- Introduction
- Specification
- Download
Specification
|
Mode
|
7100AC-FL (Color)
|
7100AM-FL (Mono)
|
| Sensor | IMX428 (C, GS) | IMX428 (C, GS) |
| Sensor Type | CMOS | CMOS |
| Resolution | 51.3 fps @ 3200 × 2200; 133.8 fps @ 1584 × 1100 |
51.3 fps @ 3200 × 2200; 133.8 fps @ 1584 × 1100 |
| Color Type | Color | Color |
| Pixel size | 4.5 μm × 4.5 μm | 4.5 μm × 4.5 μm |
| Sensor size | 4.4mm × 9.9 mm, equivalent 1.1" (Diagonal 17.47 mm) |
4.4mm × 9.9 mm, equivalent 1.1" (Diagonal 17.47 mm) |
| Digitization | 8/12bit | 8/12bit |
| Interface | USB 3.0 | USB 3.0 |
